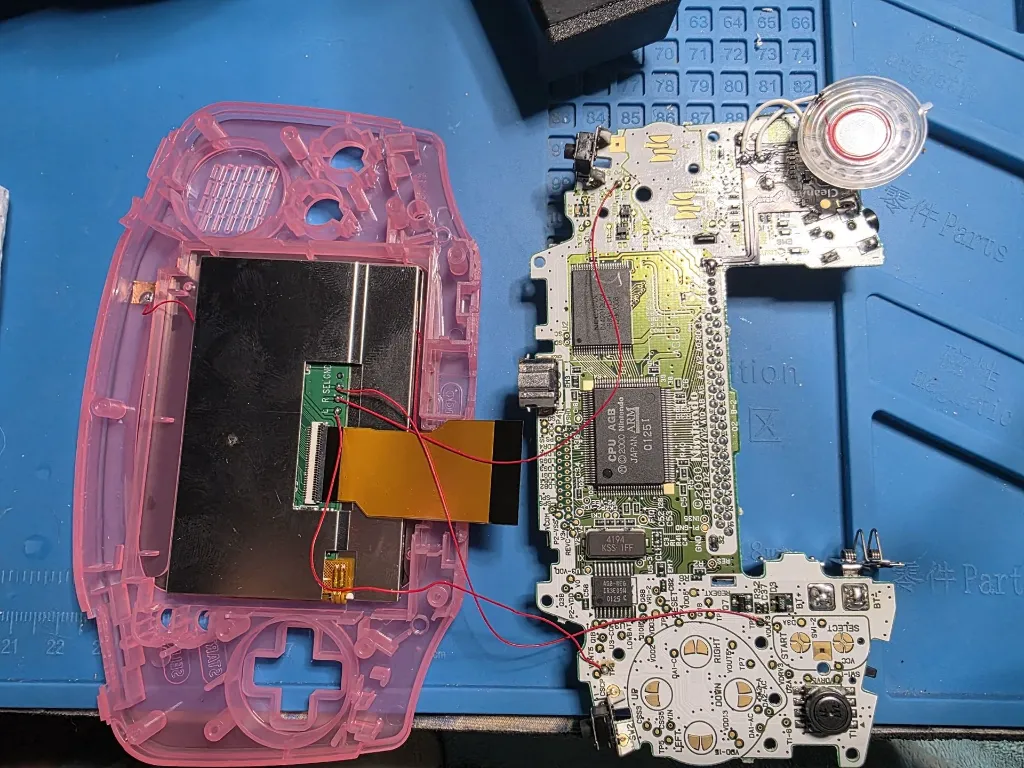

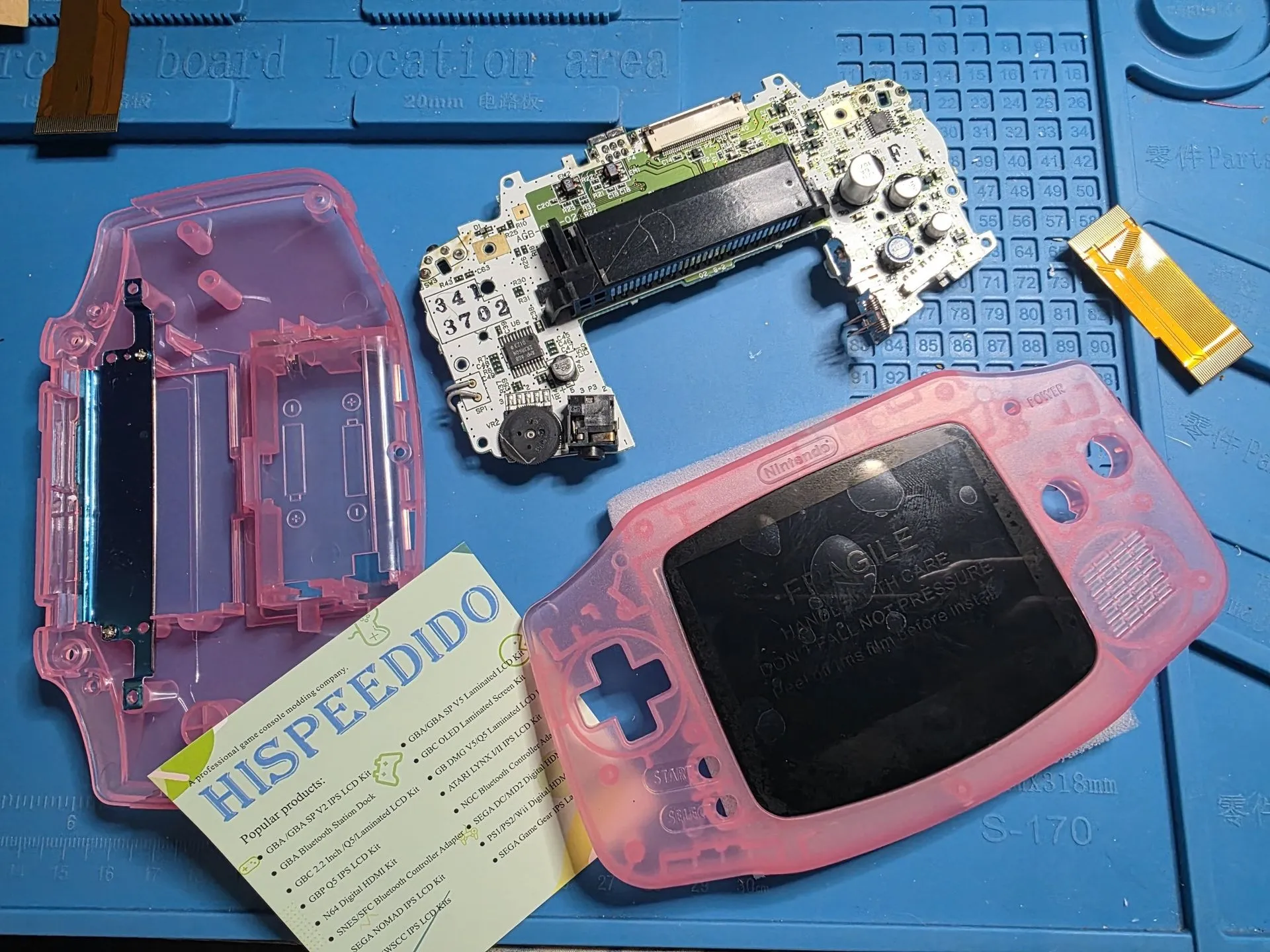

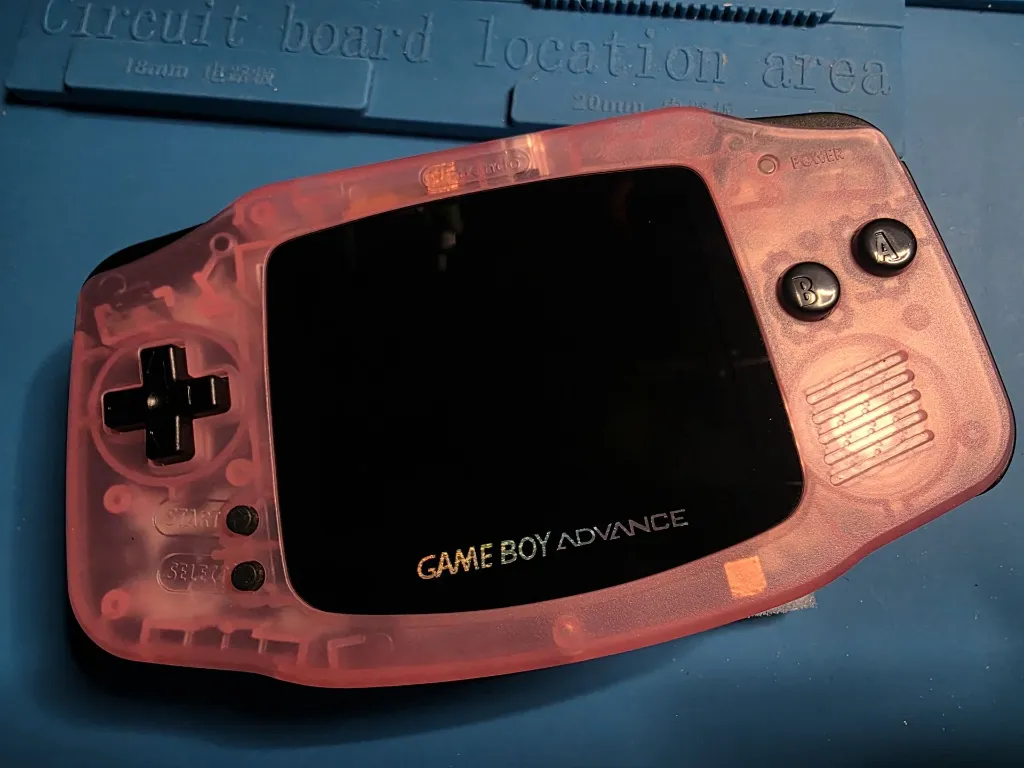

Hispeedido GBA IPS LCD V5 Laminated Drop In 720X480 Backlight Backlit Retro Pixel KIT
1. 720x480 display resolution. HD LCD. 9 pixels to 1 pixel. Integer Scaling. No any distortions.
2. Wide View angle up to 178 degree.
3. Pre Laminated Glass Screen.
4. The PCB has been embedded in the LCD metal shell.
5. Built-in OSD Menu!
6. Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1, Scanline 2.
7. 15 brightness levels.
8. 8 color modes.
9. FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.
OSD Menu Operation:
Press the Select+L+R buttons for 1 second at the same time, then release the buttons to activate the OSD Menu.
Press the Select button to select the adjustment item when OSD Menu activated.
Press the L or R button to adjust the item when OSD Menu activated.
You don't need to do any welding if you don't want the OSD menu!
CleanAmp Pro Audio Amplifier(retrosix):
The cleanAmp Pro replaces the original amplifier and speaker of the GameBoy advanced woth a modern smooth and crazy loud class D amplifier. Experience the sounds of the old school games like you will never heard them before, in clear, responsive detail.

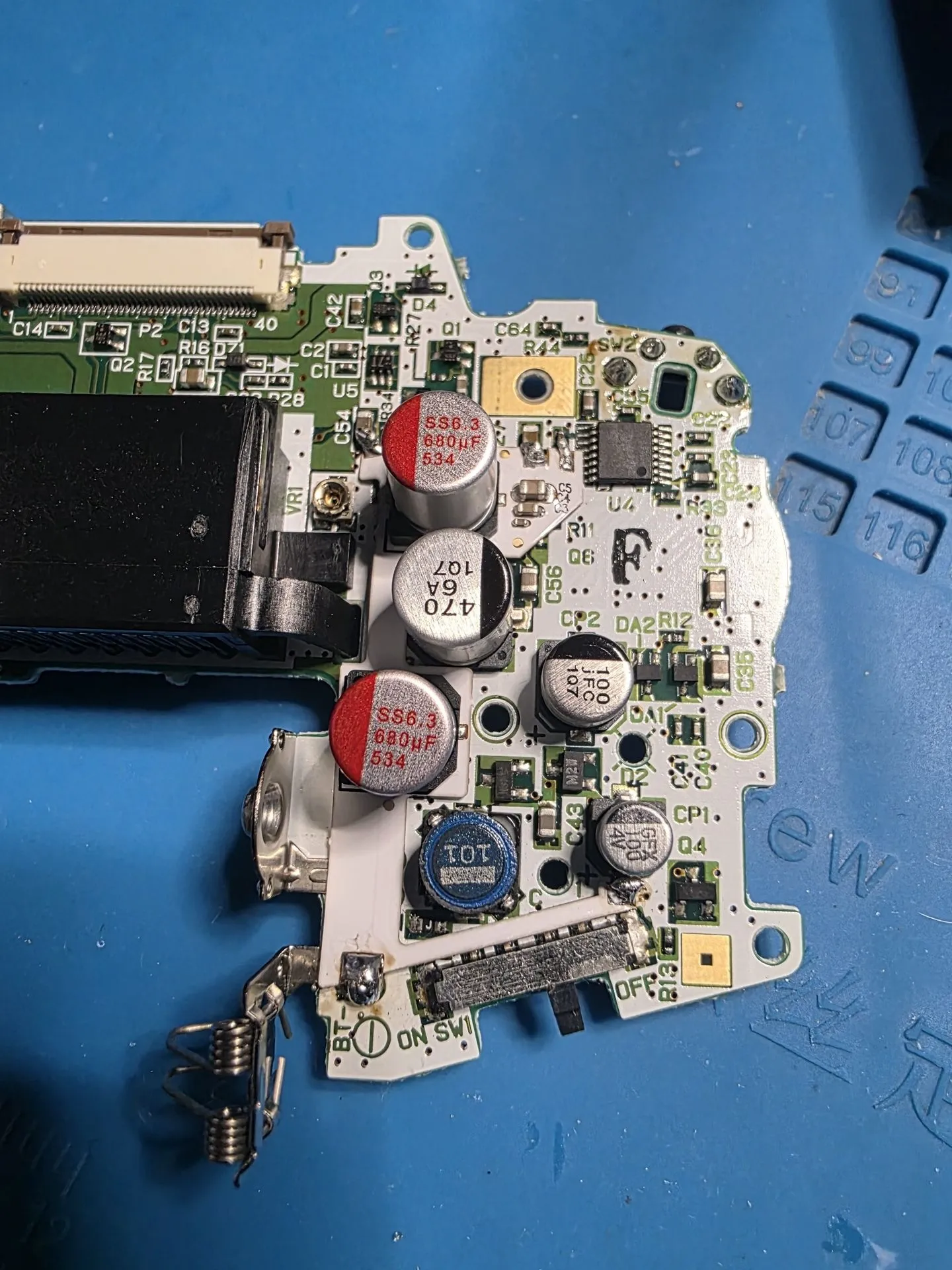

Dehum/Dehiss Kit (retrosix):
This kit consists of the perfect spec capacitors to filter out the noise on the console itself, produced by the CPU, SRAM and power regulator leaaving you with super clean sound.

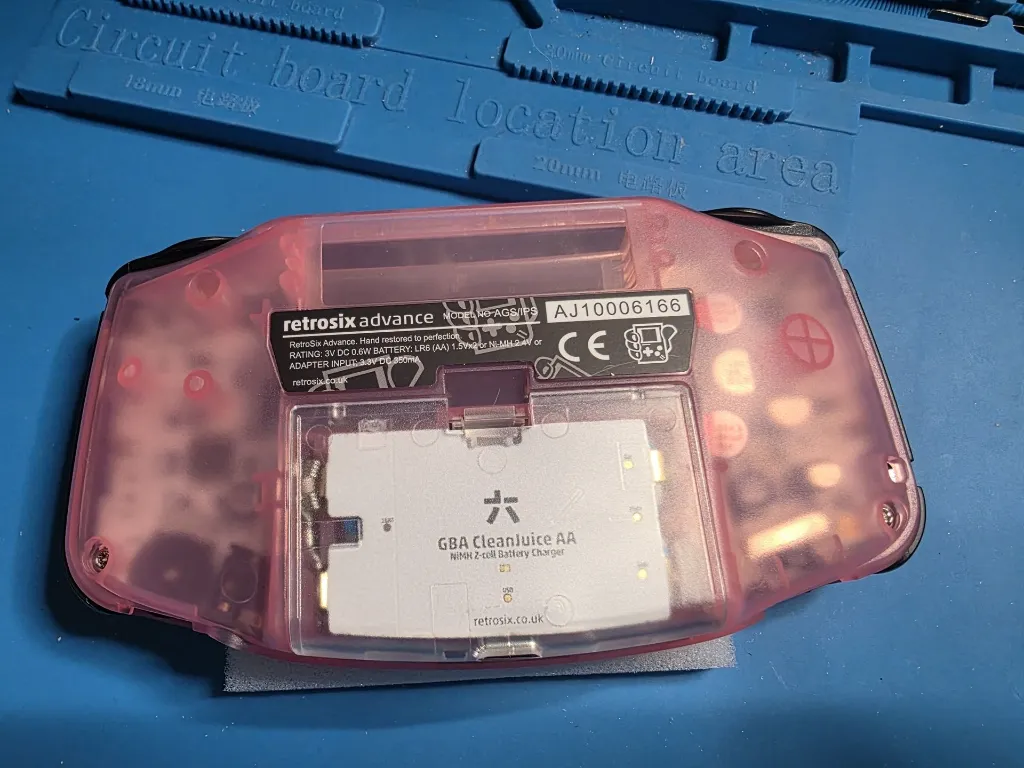

Cleanjuice AA USB-C battery pack (retrosix):
The kit comes with 2x 2500mAh rechargeable AA's, it has a build in regulator circuits plus a dedicated low battery indicator that turns the GBA red light at the correct time for the rechargeable batteries. Simply use your USB-C phone charger to charge your new favourite console!
- Steadyly fully charged over 4 hours
- safety cut-off after 6 hours
- supports reverse charge from your phone (if phone supports)
- build in safety over/under voltage, over/under current and thermal shutdown
